[DAR1]

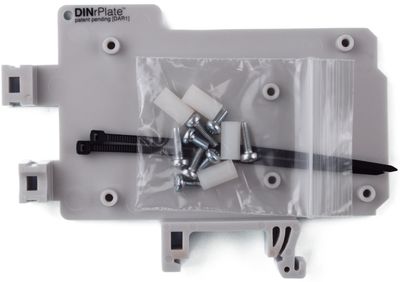

DIN Rail Mount for Arduino UNO /MEGA

  • Compatible with Arduino Uno & Mega
  • Includes base, and screws to mount board
  • Integrated strain relief for USB power cable, tie wrap included
  • Vertical design uses less DIN rail space (20mm)
  • Easy access to all ports and GPIO pins
  • Does notinclude Arduino, USB cable or DIN Rail.

Specifications

  • Industrial grey color blends in well with your other panel components for a professional look.
  • High quality Nylon 6/6 material is well suited for industrial environments.
  • Large 10mm DIN clip reliably grips rail and will not release without use of a screw driver.
  • Includes Standoffs for one shield mounting.
  • Dimension:  4.8 x 0.4 x 3.4 inches
  • Shipping Weight: 0.8 ounces

Installation Instructions

  1. Screw longer 12mm screws from backside until all the way in.
  2. Attach Arduino board to base using included 12mm standoff's.
  3. If using a shield, then attach to Arduino and secure with included 6mm screws.  Note: Because of the clearance on arduino pin headers, not all screws holes can be used.
  4. Insert either USB or DC cable for power.
  5. Secure DC cable in place with included tie-wrap, and cut off any excess tie wrap.
  6. Attach base to 35mm DIN rail.
